• RGB LED Controller for 12V or 24V DC RGB LED strip
  • Various color patterns, inc on/off, and different sequences (Static Red, Green, Yellow, Blue, Pink, Cyan, White), Abrupt Change for 3 or 7 colors, Gradual Change for 3 or 7 colors. Variable time change.
  • Can also be used to control any 12V or 24V LED up to 4A per channel (3 channels)
  • Radio Frequency control - 33ft range
  • 12V DC (or 24V) driver required to power this controller, dependant on LED strip wattage

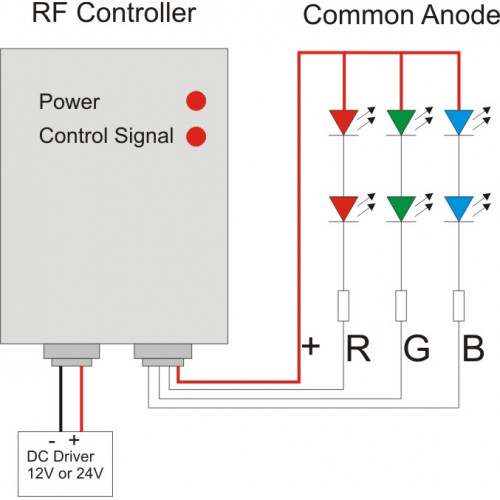

  • Max power Controlled 144W @ 12V (CMOS open drain, Common Anode)
  • Size: 3.74” L x 3.35” W x 1.02” H (95L x 85W x 26H mm)
  • Remote 433MHz, 3.32”L x 1.45”w x 0.63”W (85L x 37W x 16H mm)
  • Life: 50,000 hours
  • 0.23kg / 0.5lb
  • Working temp -20C to +60C
  • 1 year warranty
Voltage / Power
Input Voltage 12-24V DC
Output Voltage 12-24V DC
Constant Current / Voltage Constant Voltage
Wattage 144W
Output Current 4A/ch
Dimmable No
IP Rated IP67 No Dust / Water to 3.3ft
submersible No
Cable Included No
Wiring (Series / Parallel) Parallel
Location Outdoor
Material Plastic
Fixing Wall
Length 3.74"
Width 3.35"
Height 1.02"
1 yr.

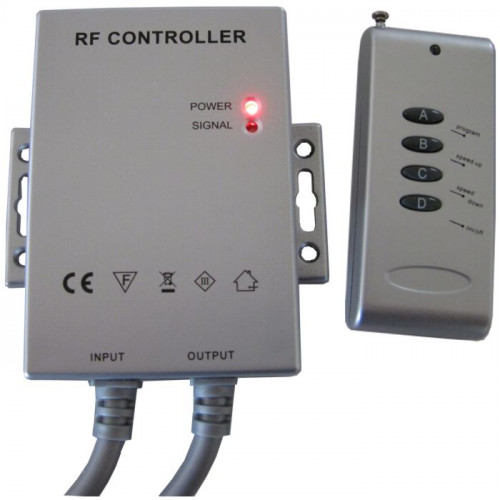

12V / 24V RF Remote Control Color Changer Controller Waterproof

  • Brand: illuminous
  • Product Code: EV-RGBCTRL-4A
  • Availability: Out Of Stock
MRP: $19.99 $7.0035% OFF
  • $12.99

Buy 20 for $12.60 each and save 3.00%
Buy 50 for $12.34 each and save 5.00%
Buy 100 for $12.08 each and save 7.00%
Buy 200 for $11.95 each and save 8.00%
