- BASICS Range
- AC Input 100~130V AC, 47-63Hz, Pf 0.6@120V, 0.62A
- DC Output: 24V, 30W (1.25A), Constant Voltage

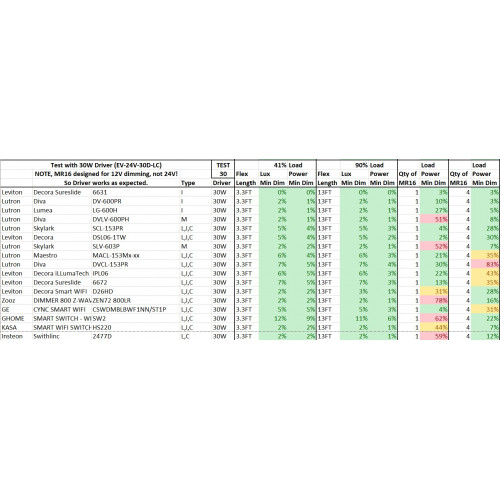

- Dimmable, Suitable for Leading Edge, Trailing Edge TRIAC, MLV, ELV
- Protection: Short-Circuit / Over Load / Over Temp. Auto-recovery Mode once Fault removed
- Approvals: UL, FCC, RoHS, Class 2, Class P
- Double Isolation for Safety

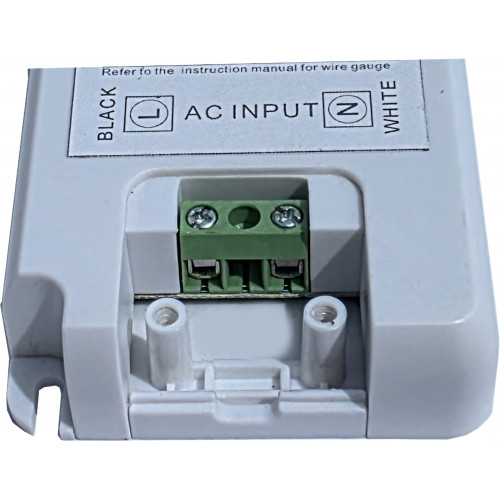

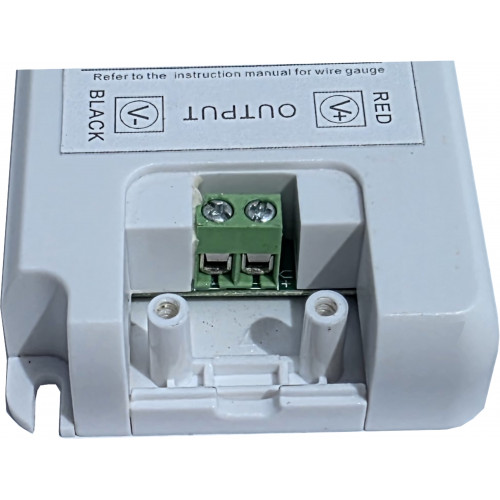

- Terminal Screw Connection (Input: N, L. Output: +V, -V)
- -20C to +45C, full load, storage -40/+80C, 20 to 90% RH NC (See derating curve)
- Vibration: 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes
- Standard: UL8750+UL1310. FCC Part 15 B
- Load Regulation: +-1%, Voltage Regulation: +-0.5V
- Family of Drivers, 12 & 24V, 30W, 60W, 80W, 96W, 100W, 120W, 150W, 200W, 300W
- Size: 6.3” L x 2.25” W x 0.71” H, 160*57.2*18.1mm (L*W*H)
- Weight: 0.53lb
- 2 year warranty
Voltage / Power | |
Input Voltage | 120V AC |
Output Voltage | 24V DC |
Constant Current / Voltage | Constant Voltage |
Wattage | 30W |
Output Current | 1.25A |
Protection (Short Circuit / Thermal / Overload) | Yes |
General | |
Dimmable | Yes |
IP Rated | No |
Cable Included | No |
Wiring (Series / Parallel) | Parallel |
Location | Indoor |
Profile | Rectangle |
Color | White |
Material | Plastic |
Fixing | Wall |
Thermal | 90C |
Dimensions | |
Length | 6.3" |
Width | 2.25" |
Height | 0.71" |
Warranty | |
2 yr. |
BASICS 24V 30W Dimmable CV DC LED Driver UL approved 120V
- Brand: illuminous
- Product Code: EV-24V-30D-LC
- Availability: Out Of Stock
-
$16.99
Buy 20 for $16.48 each and save 3.00%
Buy 50 for $16.14 each and save 5.00%
Buy 100 for $15.80 each and save 7.00%
Buy 200 for $15.63 each and save 8.00%
