- Fully dimmable With standard TRIAC dimmers
- Suitable for Halogen Lights ONLY, will not work with LED.
- Single Input 120VAC, +-6%, 50/60 Hz, 0.5A, PF>0.98
- Output 11.5V +-6%, min load 10W, max load 60W
- Approvals: UL, cUL class 2, CE, FCC, RoHS
- Flying leads for rapid connection
- IP20 For dry location
- Protection: Short-Circuit, Overload, Over Heat
- Soft start to prolong lamp life. NOTE: Output = 0V until a valid Halogen or Incadescant load > 10W.
- Auto-restart function when fault condition is removed
- -10C to +40C, full load, max case 65C. 20 to 95% RH NC
- Size: 2.56” L x 1.38” W x 0.91” H (65mm L x 35mm W x 23mm H)
- Shell material: Plastic
- 2 year warranty
| Voltage / Power | |
| Input Voltage | 120V |
| Output Voltage | 12V AC |
| Constant Current / Voltage | Constant Voltage |
| Wattage | 60W |
| Output Current | 5A |
| Protection (Short Circuit / Thermal / Overload) | Yes |
| General | |
| Dimmable | Yes |
| IP Rated | No |
| submersible | No |
| Cable Included | Yes |
| Wiring (Series / Parallel) | Parallel |
| Location | Indoor |
| Material | Plastic |
| Thermal | 104C |
| Dimensions | |
| Length | 2.56" |
| Width | 1.38" |
| Height | 0.91" |
| Warranty | |
| 2 yr. | |

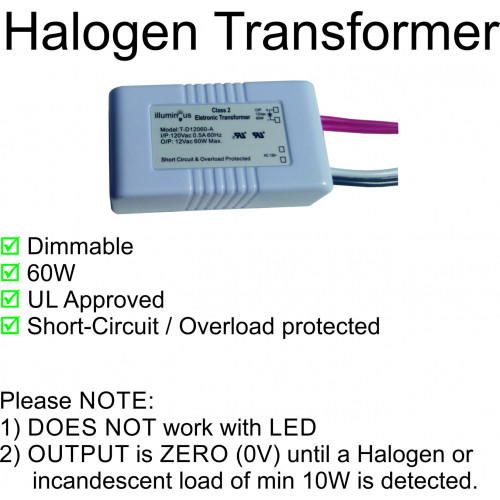

10-60W 120V to 12V Dimmable Transformer UL approved
- Brand: illuminous
- Product Code: EV-D12060-A
- Availability: In Stock
-
$6.75
Buy 20 for $6.55 each and save 3.00%
Buy 50 for $6.41 each and save 5.00%
Buy 100 for $6.28 each and save 7.00%
Buy 200 for $6.21 each and save 8.00%
