- Single Input 120Vac ±10%, 60Hz, 0.2A
- Dimmable with Industry Standard Dimmers, Triac Leading and Trailing Edge Dimmers
- With Power Factor Correction function: PF > 0.9, Inrush < 10A
- Output 500mA ±6%, 15W, 18-30V
- Compact, lightweight in plastic case.
- Designed for indoor application.
- Lamps wired in series, and total value of LED Vf should be under 30V
- Protection: Short-Circuit / Over Load / Over Heat and Auto-recovery (Hiccup) Mode
- Fly leads 20AWG 15cm
- Approvals: UL, cUL (8750, 1310), class 2, FCC, RoHS
- Withstand Voltage, I/P-O/P 1.25K VAC, Isolation 100MR / 500VDC at 25C
- Over-Voltage 32-40V
- -20C to +65C, full load, max case 80C. 20 to 90% RH NC

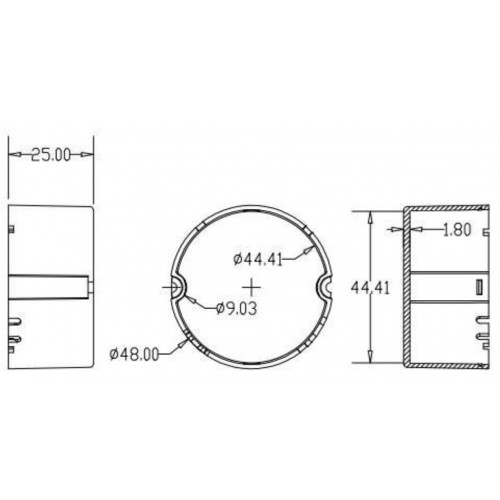

- Size: 1.89” D x 0.98” H (48mm D x 25mm H)
- Tested Dimmers inc. : Lutron S-600P-AL, DVELV-300P-AL
- 2 year warranty
| Voltage / Power | |
| Input Voltage | 120V |
| Output Voltage | 18-30V |
| Constant Current / Voltage | Constant Current |
| Wattage | 15W |
| Output Current | 500mA |
| Protection (Short Circuit / Thermal / Overload) | Yes |
| General | |
| Dimmable | Yes |
| IP Rated | No |
| submersible | No |
| Cable Included | Yes |
| Wiring (Series / Parallel) | Series |
| Location | Indoor |
| Material | Plastic |
| Thermal | 80C |
| Dimensions | |
| Length | 1.89" |
| Width | 1.89" |
| Height | 0.98" |
| Warranty | |
| 2 yr. | |

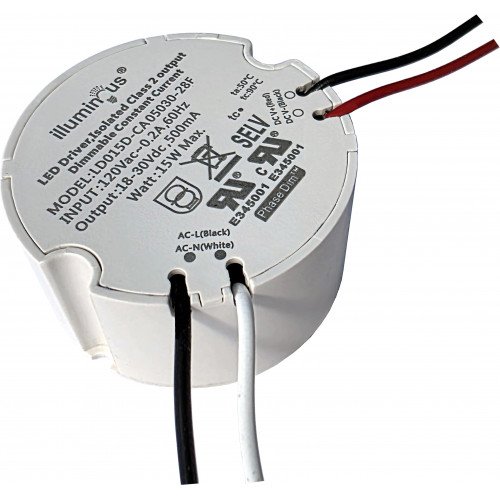

500mA Dimmable Constant Current 15W DC LED Driver UL approved
- Brand: illuminous
- Product Code: EV-LD015D-CA05030-28F
- Availability: In Stock
-
$14.99
Buy 20 for $14.54 each and save 3.00%
Buy 50 for $14.24 each and save 5.00%
Buy 100 for $13.94 each and save 7.00%
Buy 200 for $13.79 each and save 8.00%
