| File | Size | |
|---|---|---|
| Datasheet | 316.28KB | Download |
- LED PAR36 8-9W, 10-30V AC/DC, Well Lamp, Eq to 50W Halogen with 85% Energy saving
- Suitable for Landscape Well Light replacement. Custom LED Driver circuit to withstand voltage surges in Landscape environments..
- Luminous flux: 800-900LM, 120 degree spread Flood. Replace 50PAR36, 19880, 16541, 16542, 11468, 55017, 296038, 55017, 228593, 296038, 14555
- Color temperature: 2800-3000K, Warm-white, CRI > 73Ra
- Protect level: IP65 (Splash / Waterjet proof)
- No UV or IR radiation, low heat
- Base: Crew Terminal
- Size: Dia 113 * 60mm
- Light source: 60 x SMT 2835 LED
- Life: 35,000 hours, min 70% of initial output.
- 2 year warranty
- Ensure that the lamp is installed above ground level, within a fixture, with drainage (stone chips) below the lamp to avoid pooling from flash downpours. Product not warranted for Water damage.
| Bulb Type | |
| PAR36 | |
| Voltage / Power | |
| Input Voltage | 10-24V AC/DC |
| Wattage | 9W |
| General | |

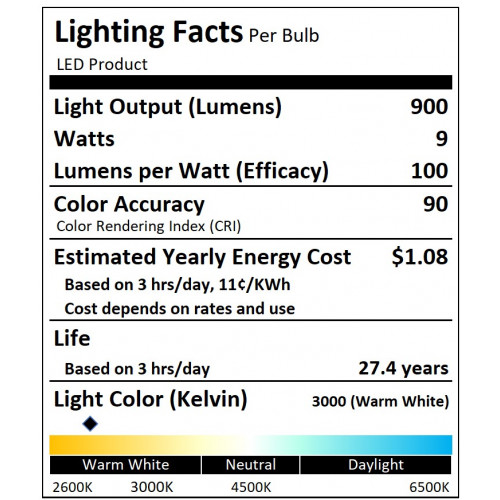

| Lumens | 900 |
| Bulb Color | Warm White |
| Bulb Included | Yes |
| Color Temperature K | 3000K |
| LED Qty | 60 |
| Dimmable | Yes |
| IP Rated | IP65 No Dust / Water Jets |
| submersible | No |
| Cable Included | No |
| Wiring (Series / Parallel) | Parallel |
| Location | Outdoor |
| Material | Glass |
| Angle | 120 |
| Dimensions | |
| Height | 2.36" |
| Diameter | 4.45" |
| Warranty | |
| 1 yr. | |
| Life (hrs) | 30000 |
LED 9W (Eq. to 50W) PAR36 12V AV/DC Flood Lamp LED
- Brand: illuminous
- Product Code: EV-LED-PAR36-9W
- Availability: In Stock
-
$7.99
Buy 20 for $7.75 each and save 3.00%
Buy 50 for $7.59 each and save 5.00%
Buy 100 for $7.43 each and save 7.00%
Buy 200 for $7.35 each and save 8.00%
